Conveyor Belt
Advantage:Strong tensile strength, long-life,little elongation,easy to trough, anti-bent, suitable for long distance, heavy load and high-speed conveying materials.
Use: Conveying materials in coal, mine. harbour, metallurgy, power station,chemical etc.field.
Type:
(1)Conventional, Fire-resistant, Cold-resistant, Abrasion-resistant,Heat-resistant,
Acid/ alkali-resistant etc.(Refering rubber cover)
(2) General structure, Cross rigid structure, Anti-tearing iron ring structure.
Fabric Conveyor Belts are Named According to Different Carcass: Cotton Conveyor Belt, Nylon Belt, EP Belt.
COTTON BELT: suitable for middle/ short distance conveying.
NN BELT: under condition of middle/ long distance.heavy loading capacity, high speed,strong lash and high vulnerability.

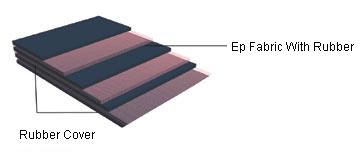

EP BELT:under condition of middle/long distance,heavy loading capacity,high speed conveying, good flexing capacity, troughable, heat resistant,low lad elongation.
3. SOLID WOVEN CONVEYOR BELT

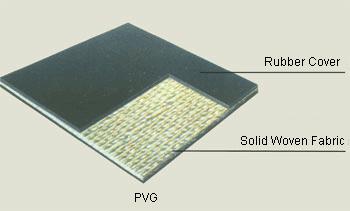

PVC/PVG: Solid woven flame retardant belts are used in conveying coal, without taking off for layers, low elongation,anti-shock and tearing-resistant, usually used in mining.

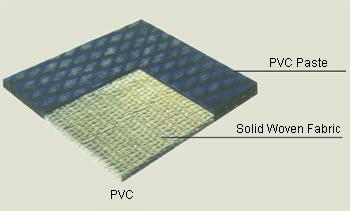

PVC BELT: Used for conveying material up to 16 。inclination under dry conditions.PVG BELT WITH: Rubber cover .suitable for conveying water material up to 20。 inclination.
4. CORRUGATED SIDEWALL CONVEYOR BELT
Corrugated sidewall conveyor belt is one of the most effective ways of elevating materials in a confined space,the economy is achieved by single belt operation,wide range material can be handled, less space requirement,no transfer point, low maintenance and big capacity. Corrugated sidewall belt can be designed into a set of complete transportation system according to application.
5. CHEBRON BELT
Feature:Suitable for bulk,material packed in bag conveying up to 45, slide resistant and high conveying capacity.Bucket Elevator Conveyor Belt
Application: Suitable for conveying material vertically, widely used in building. mining. chemical.lightindustry,Power station and grain etc, field.
Featrue: Little earth coverage, no pollution, great conveying capacity,suitable for conveying bulk material.
6. PIPE CONVEYOR BELT
Application:Used in pipe conveyor for material conveying。
7.ENDLESS CONVEYOR BELT
Fabric:Twining,no joint.
Rubber Cover: Abrasion Resistant Rubber Cover, Long-life.
Endless Belt: Clean and Smooth Surface, Accurate Measurement.
8. SEALING BELT
Application: Prevent rain, snow, wind and dust, widely used in harbor, building, chemical and grain etc, field.
Application:Sealing belt is used as protection cover for unloading conveyor, reproduting machine and other unloading material equipment.
9. FILTRATION CONVEYOR BELT
Application:
It can be used in chemistry, light industry, chemical fibre, medicine,food industry, mining,envioronment protection, etcextansivhey, seperate gas from solid.
Featrue:
It can filter, wash,sorb, filtration fabric rebirth continuors'y; It has the mirit of high filtration rate, high production capability, low washiness of filter cake, operate easily.
